Drilling Tooling
Tooling & Wear Parts
Complementing the core rig, our drilling tooling range — augers, buckets, core barrels, and CFA strings — enables versatility across different ground types and project requirements.
Overview
The CESCO Tooling Range
Drilling tooling complements the drilling rig and dictates how well it performs in a given ground condition. CESCO supplies the full range of augers, drilling buckets, clean-out buckets, core barrels, and CFA strings — designed to suit the broadest set of soil and rock conditions encountered on Australian foundation projects.
By selecting the appropriate attachment, operators can optimise efficiency, improve accuracy, and ensure the structural integrity of foundation systems. Every tool is compatible with most major rotary drilling rigs and can be customised in diameter, Kelly box, and teeth configuration. Any smaller or larger OD is available on request.
The Range
Drilling Tooling Catalogue
Six tooling categories covering the foundation drilling lifecycle — click any item to view the full size and weight tables in the datasheet PDF.
CFA

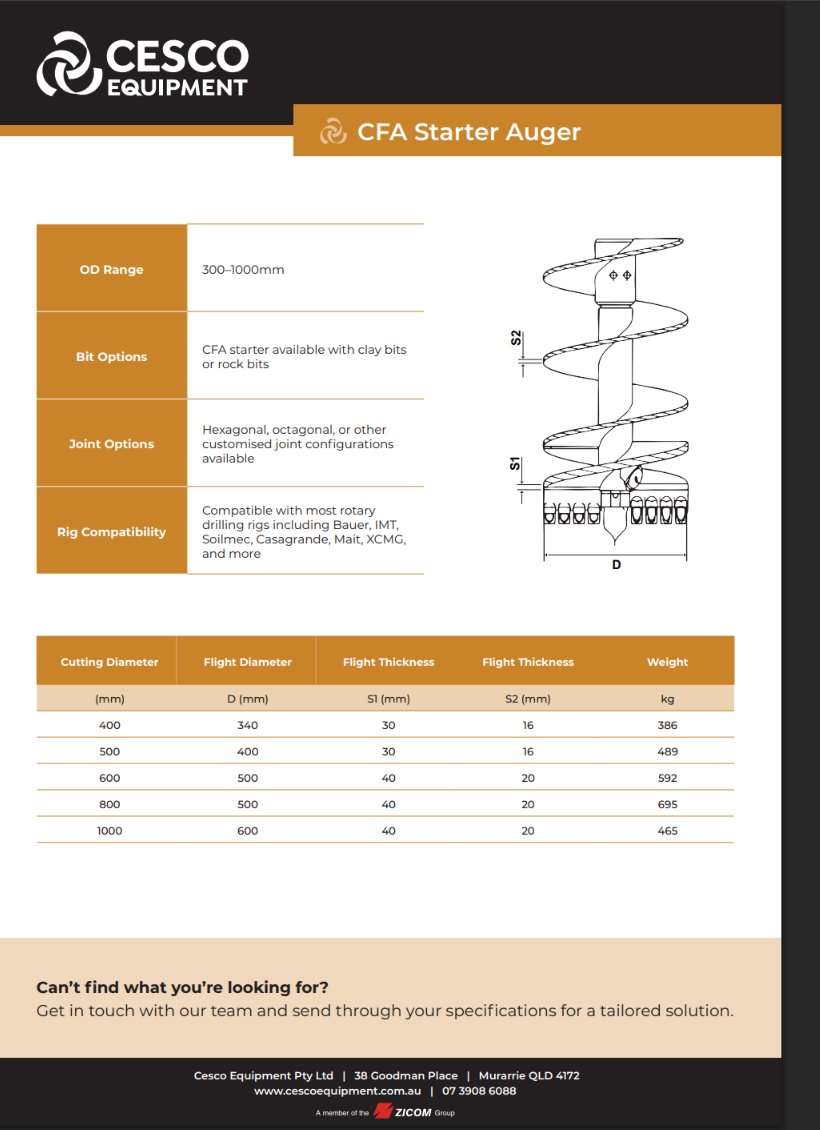

CFA Starter Auger
Starter auger for Continuous Flight Auger piling, available with clay bits or rock bits.
300–1000 mm OD Range
Bauer / IMT / Soilmec / Casagrande / Mait / XCMG Rig Compatibility
CFA

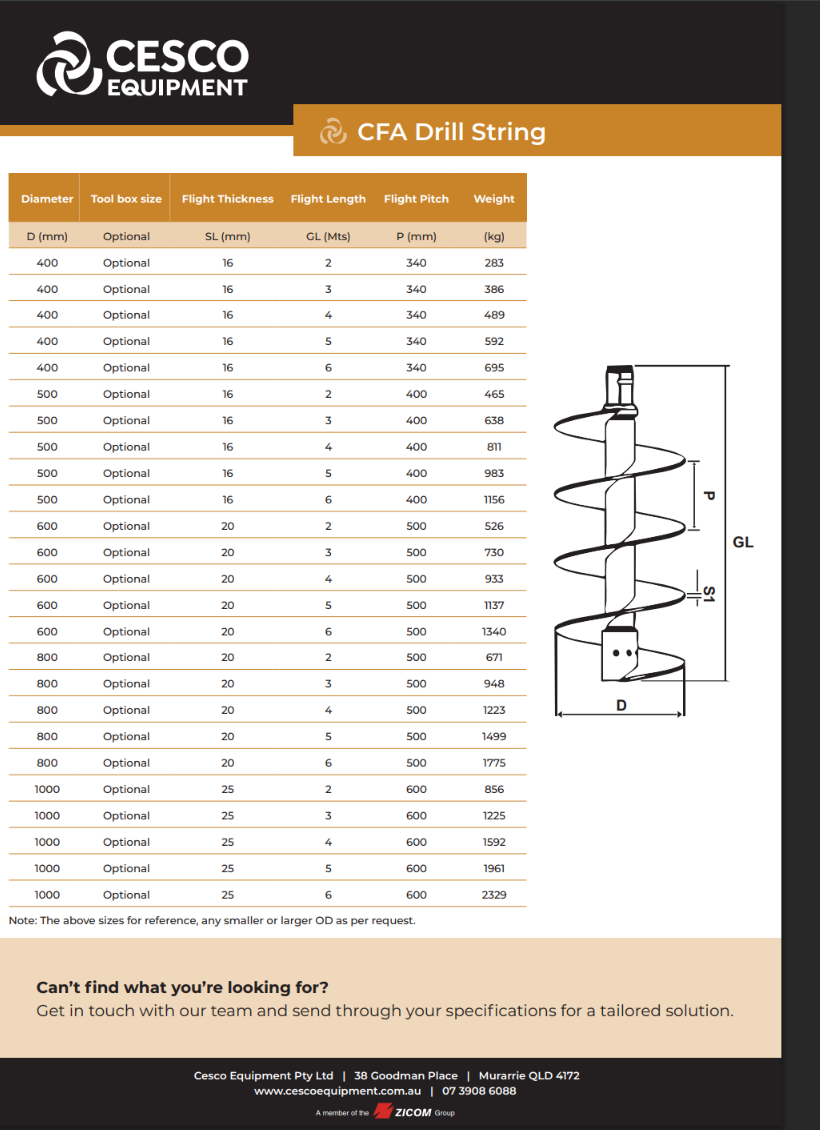

CFA Drill String
Continuous Flight Auger drill string in 2–6 m lengths, 400 to 1000 mm diameter.
400–1000 mm Diameter
2–6 m Flight Length
Augers
Augers (Flat Bottom & Tapered)
Full auger range from 500 mm to 2,500 mm cutting diameter for piling and foundation drilling.
500–2,500 mm Diameter
Up to 3,610 kg Weight
Tooling

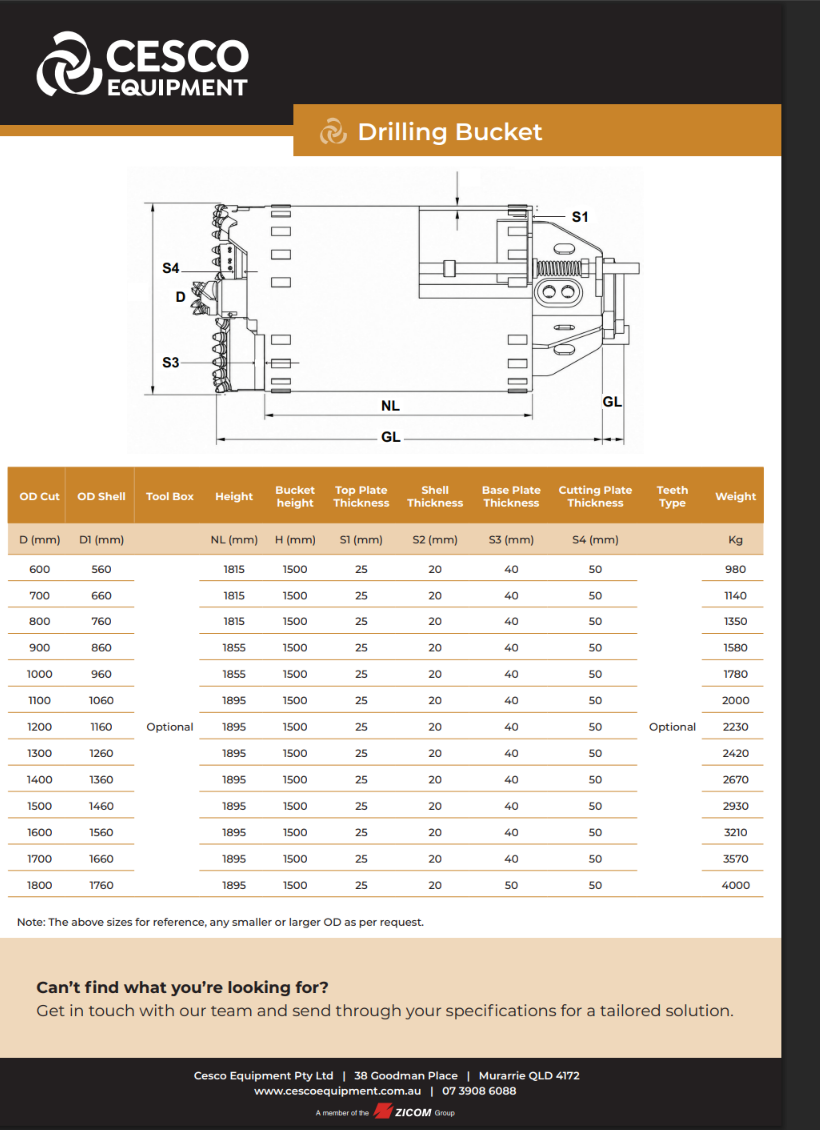

Drilling Bucket
Heavy-duty drilling buckets from 600 to 1,800 mm cutting diameter with optional Kelly box and teeth.
600–1,800 mm Diameter
1.5 m Bucket Height
Tooling

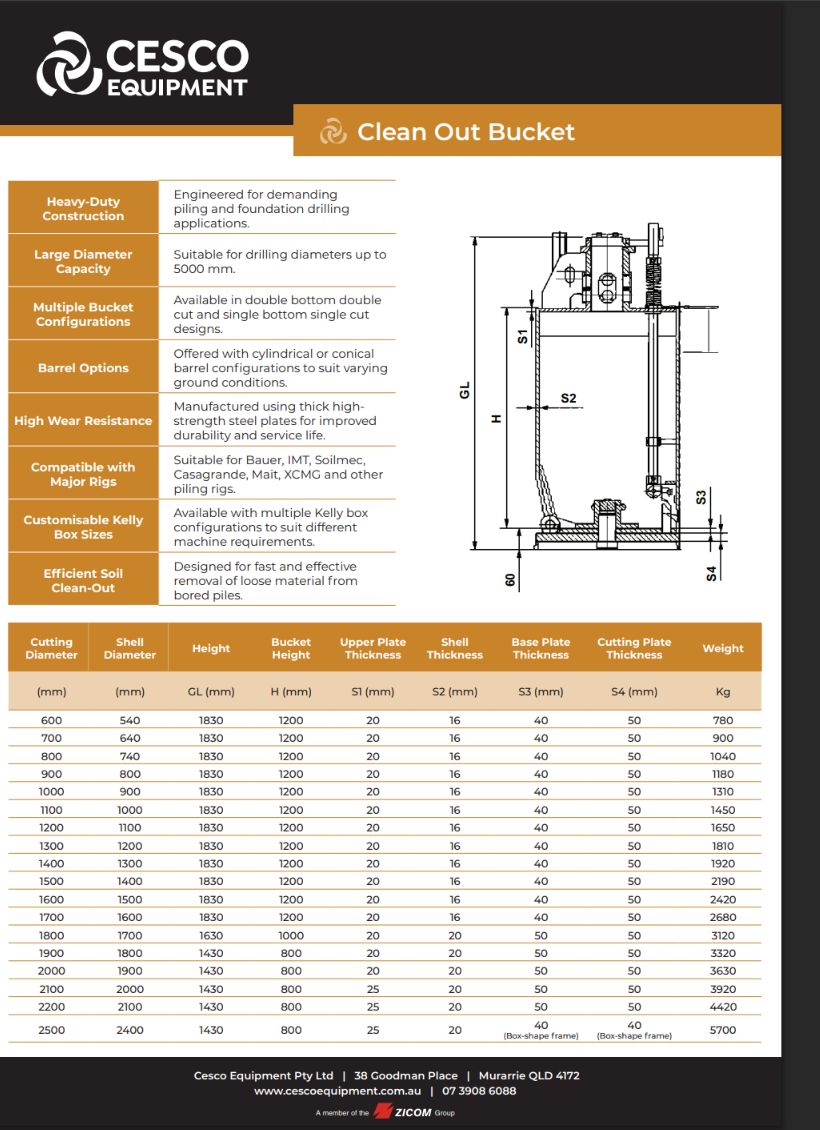

Clean Out Bucket
Heavy-duty clean-out buckets for fast removal of loose material from bored piles. Up to 5,000 mm diameter.
600–2,500 mm Diameter
Up to 5,000 mm Custom Max
Tooling

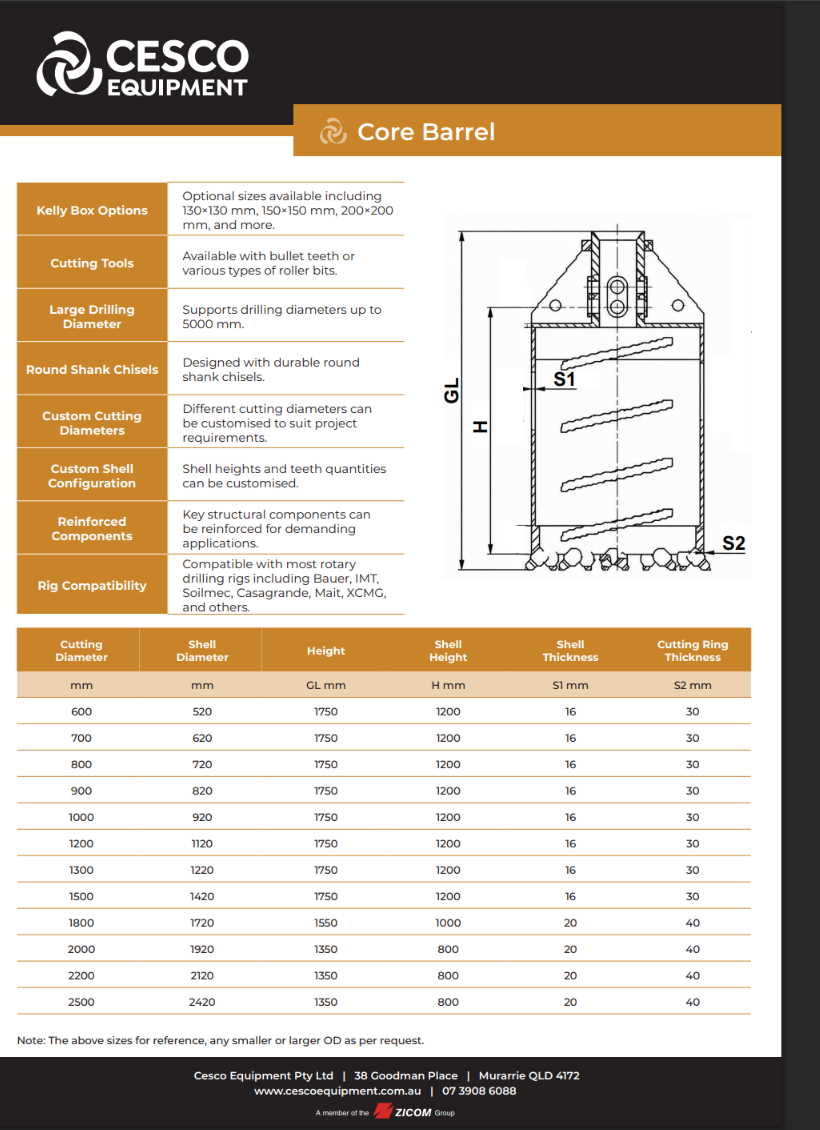

Core Barrel
Drilling core barrels with bullet teeth or roller bits — customisable Kelly box, shell, and tooth options.
600–2,500 mm Diameter
Bullet teeth or roller bits Cutting
Why CESCO
Built for Project Requirements
01
Custom diameters
Standard sizes shown — any smaller or larger OD is available on request to suit your project specifications.
02
Rig compatibility
Compatible with most major rotary drilling rigs including Bauer, IMT, Soilmec, Casagrande, Mait, XCMG, and others.
03
Customisable Kelly boxes
Multiple Kelly box configurations available including 130×130, 150×150, 200×200 mm and custom sizes.
04
Reinforced for demand
Key structural components can be reinforced for demanding applications and difficult ground conditions.
Drill Tools
Robot Welder
Enquire Now
Need help speccing tooling?
Talk to our team about diameters, joint configurations, and rig compatibility for your specific project.
