Caliper Logging Test Ultrasonic Caliper Log GS-83

High-precision ultrasonic borehole and diaphragm wall inspection with C-LEAF 3D imaging — 300–11000 mm aperture range, automatic probe operation, real-time display and wireless data transmission.

300–11000 mm Aperture Range

100/150 m Sounding Depth

83 kHz Ultrasonic Frequency

±0.2% FS Horizontal Accuracy

Overview

Caliper Logging Test Ultrasonic Caliper Log GS-83

The Ultrasonic Caliper Log is a high-precision inspection system designed for borehole, pile, and diaphragm wall testing in deep foundation projects. Using advanced ultrasonic and C-LEAF 3D imaging technology, it provides accurate cavity and groove profiling, helping identify defects, verify structural integrity, and improve quality control.

Suitable for rail, highway, port, subway, bridge, and high-rise construction projects, the system delivers reliable performance across a wide range of site conditions with intelligent automated operation, real-time data display, and wireless data transmission capabilities.

Request a Quote Download Spec Sheet

CESCO Caliper Logging Test (Ultrasonic) GS-83 — probe assembly with tablet display

Specifications

Technical Details

Features

3D Imaging Advanced C-LEAF 3D borehole imaging technology

Wide Detection Range Detects apertures from 300 mm to 11000 mm

Intelligent Operation Automatic probe lifting/lowering with real-time display

Signal Stability Anti-electromagnetic interference signal processing

Power Supply Built-in lithium battery and 220 V AC support

Wireless Connectivity Optional WiFi data upload with GPS positioning

Compact Design Portable winch system fits in a standard vehicle

Self-Calibration Automatic calibration based on aperture or groove width

High Adaptability Suitable for mud density up to 1.4 g/cm³

Real-Time Reporting Displays and prints waveform and hole diagrams

Specifications

Model Number GS-83

Master Control Form Touch terminal, 4-core processor, 8 GB RAM

Display Mode 12.1" highlight display

Operation Mode Touch screen

Operating System Linux system

Scanning Speed ≥ 20 cycles/second

Band Width 1–500 K

Acoustic Accuracy ≤ 0.5%

Measurement Accuracy (Horizontal) ±0.2% FS

Measuring Range 300–11000 mm (aperture)

Ultrasonic Frequency 83 kHz

Transmitting Voltage 1000 V

Sounding Depth 100 / 150 m (customisable)

Depth Resolution ≤ 5 mm, depth error ≤ 0.1%

Sound Velocity Calibration Yes

Recording Mode Colour / black & white images, data files

Output Mode Printer (assorting)

Data Export USB or wireless upload

Sediment Thickness Detection Supported (optional special probe)

Operating Temperature −20 °C to +80 °C

Power Supply Mode 220 V AC / lithium battery

Probe Size 104 mm × 104 mm × 300 mm

Probe Mass 14 kg

Mud Weight ≤ 1.4 g/cm³

Lifting Speed Adjustable from 0–20 m/min

Emergency Lift Yes

Stop Function Hole bottom and hole mouth induction stop

Hole Bottom & Orifice Start Slowly Yes

Probe Bearing Mode Pressure sensor asynchronous adjustable double wire load, independent cable assistance

Probe Holder Drawer lock tray

Winch Lifting Device Dimensions 800 mm × 500 mm × 390 mm

Winch Lifting Device Weight 65 kg

Three-Dimensional Imaging Yes

Product Gallery

Up Close

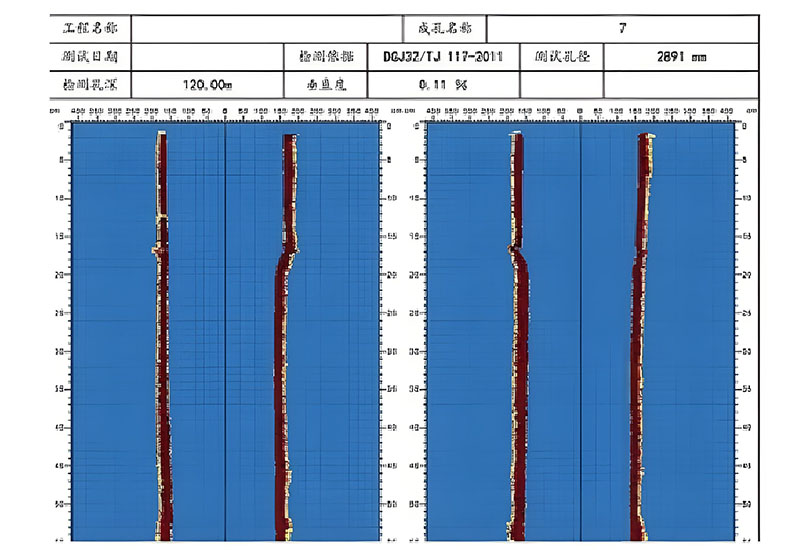

Ultrasonic Caliper Log GS-83 — probe assembly close-up showing transducer array — Ultrasonic probe assembly with C-LEAF 3D imaging transducers

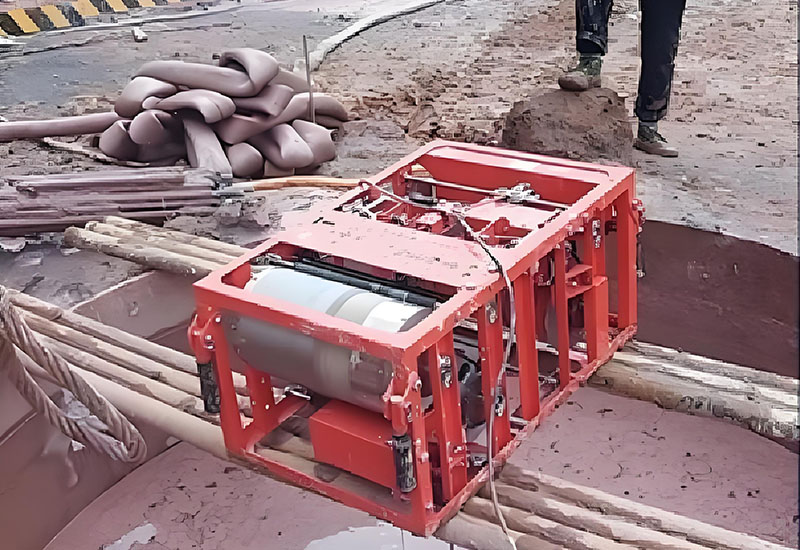

Ultrasonic Caliper Log GS-83 — portable winch lifting device fits in a standard vehicle — Portable winch lifting device — vehicle-transportable footprint

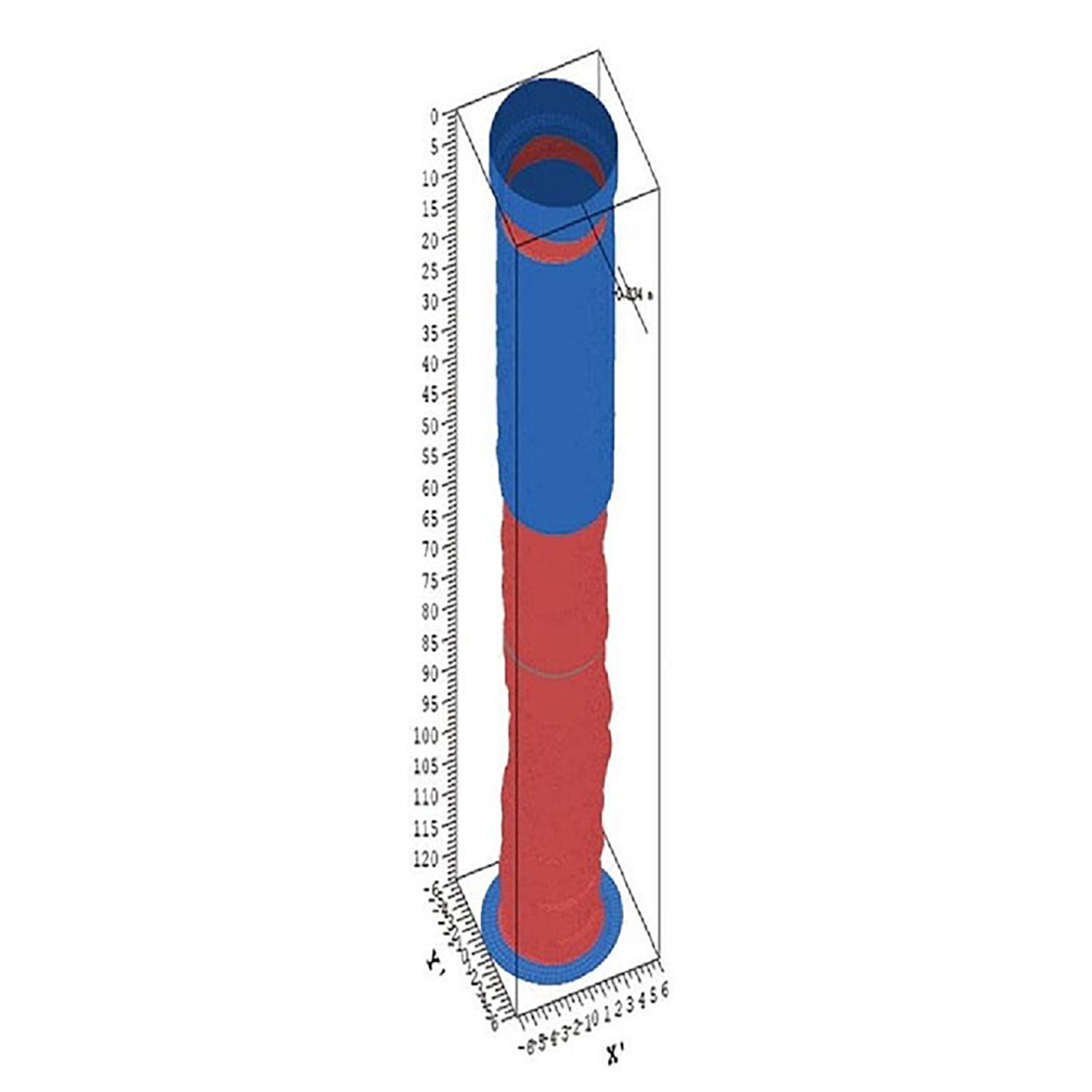

Ultrasonic Caliper Log GS-83 — 3D borehole imaging output chart — 3D borehole imaging output — cavity and groove profiling
