FAHH 14-22t Hydraulic Impact Hammer Range

The FAHH 14-22t Hydraulic Impact Hammer Range extends the FAHH line into heavier-duty piling applications with ram masses from 14,000 kg to 22,000 kg and maximum impact energy from 210 kNm to 330 kNm. The range is built for driving larger pile sections from piling rig leaders or crane-suspended setups.

Like the smaller FAHH range, the heavy hammer range uses proprietary hydraulic circuitry to support hammer efficiency above 90% and maintain a consistent impact value. Step-less ram-height control, simple modular construction, and interchangeable parts help crews adapt to different pile conditions while keeping maintenance practical on site.

Request a Quote Download Spec Sheet

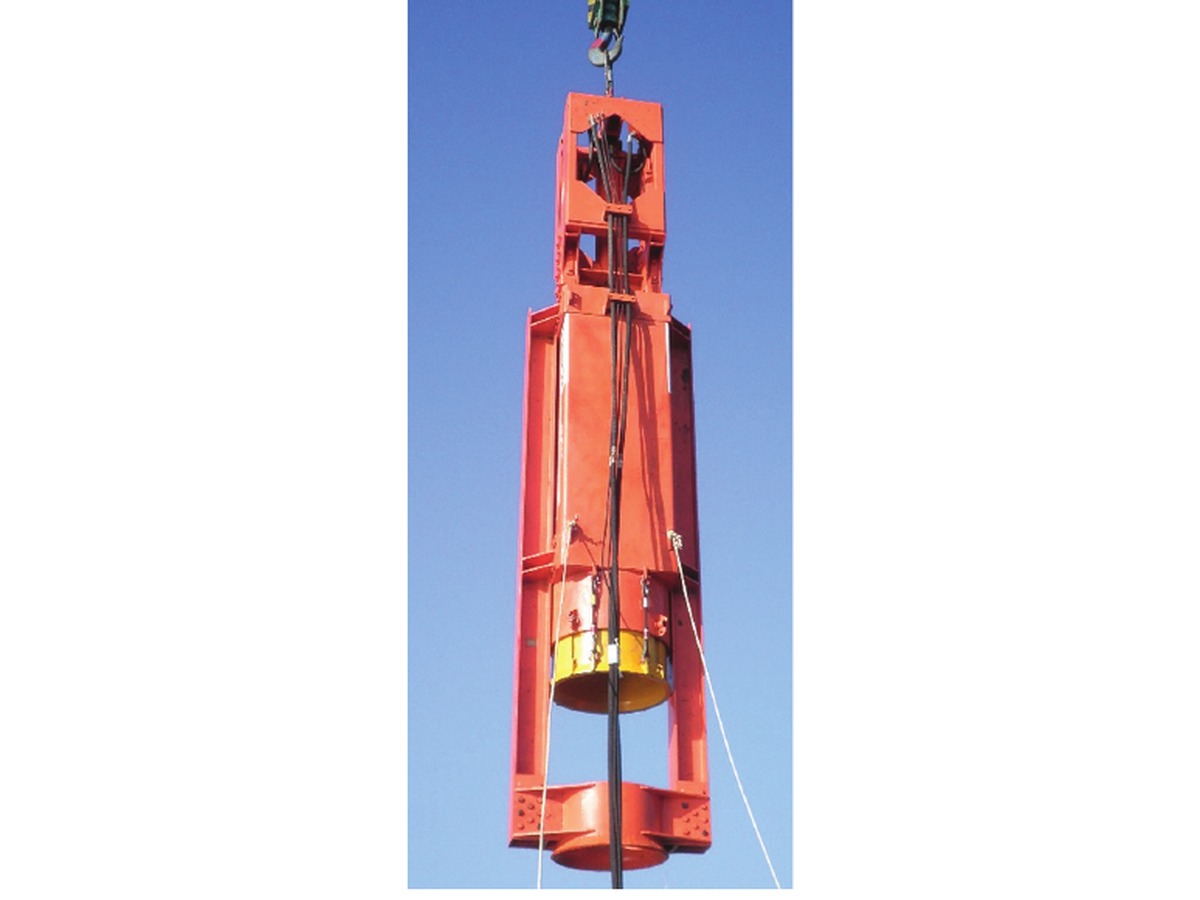

FAHH 14-22t hydraulic impact hammer
Specifications

Technical Details

FAHH 14-22t Range Performance
HH14 14,000 kg ram, 210 kNm, 32 BPM, 22,000 kg hammer, 260 bar, 370 LPM
HH16 16,000 kg ram, 240 kNm, 32 BPM, 24,000 kg hammer, 270 bar, 370 LPM
HH20 20,000 kg ram, 300 kNm, 30 BPM, 28,000 kg hammer, 290 bar, 415 LPM
HH22 22,000 kg ram, 330 kNm, 29 BPM, 30,000 kg hammer, 300 bar, 415 LPM
Common Hammer Data
Maximum Stroke 1,200 mm
Minimum Stroke 200 mm
Operation Piling rig leaders or crane suspended
Efficiency Above 90% hammer efficiency
Control Step-less ram-height control
Construction Simple modular construction with interchangeable parts
FAV 375 Hydraulic Powerpack
Engine John Deere
Engine Power Output 350 HP
Engine Speed 1,800 RPM
Pump Max Oil Flow 415 LPM
Max Working Pressure 300 bar
Hydraulic Oil Capacity 800 litres
Diesel Fuel Capacity 500 litres
Weight Dry / Wet 4,500 / 5,500 kg
Hydraulic System Open circuit system using electronically controlled axial piston pumps
Service Features Hydraulic filter sensor and temperature sensor for service indication
Control Panel Engine RPM, emergency stop, and system load test
Technical Diagrams

Dimensions & Geometry

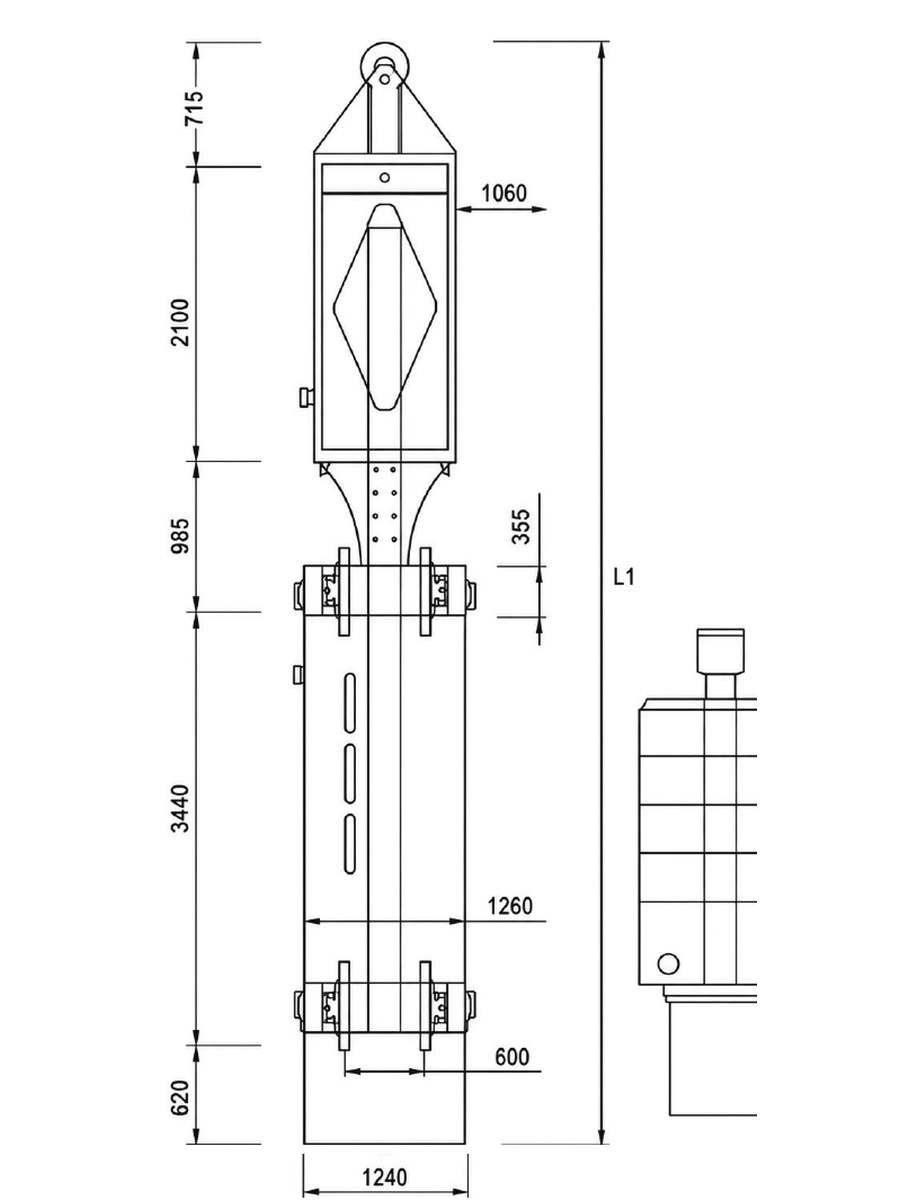

FAHH 14-22t hydraulic impact hammer dimensional diagram
