GeoSitter Pile Testing

Crosshole Sonic Logging Test CHUM Cross Hole Ultrasonic Monitor

Ultrasonic crosshole logging for deep foundation piles — 12-inch touchscreen, 4 programmable channels, 60 kHz probes and Bluetooth for fast field testing and streamlined reporting.

12-inch Touchscreen Display

4 Programmable Channels

60 kHz Probe Frequency

70 dB Signal-to-Noise Ratio

Overview

Crosshole Sonic Logging Test CHUM Cross Hole Ultrasonic Monitor

The CSL (Crosshole Sonic Logging) Test system is designed for accurate integrity testing of deep foundation piles using advanced ultrasonic monitoring technology. By transmitting ultrasonic waves through water-filled access tubes within the concrete, the system can detect defects, inconsistencies, and changes in concrete quality with high precision.

Featuring a 12-inch high-resolution touchscreen display, 4-channel operation, Bluetooth connectivity, and real-time data upload, the CHUM Cross Hole Ultrasonic Monitor delivers efficient field testing, reliable analysis, and streamlined reporting for piling and foundation projects.

Request a Quote Download Spec Sheet

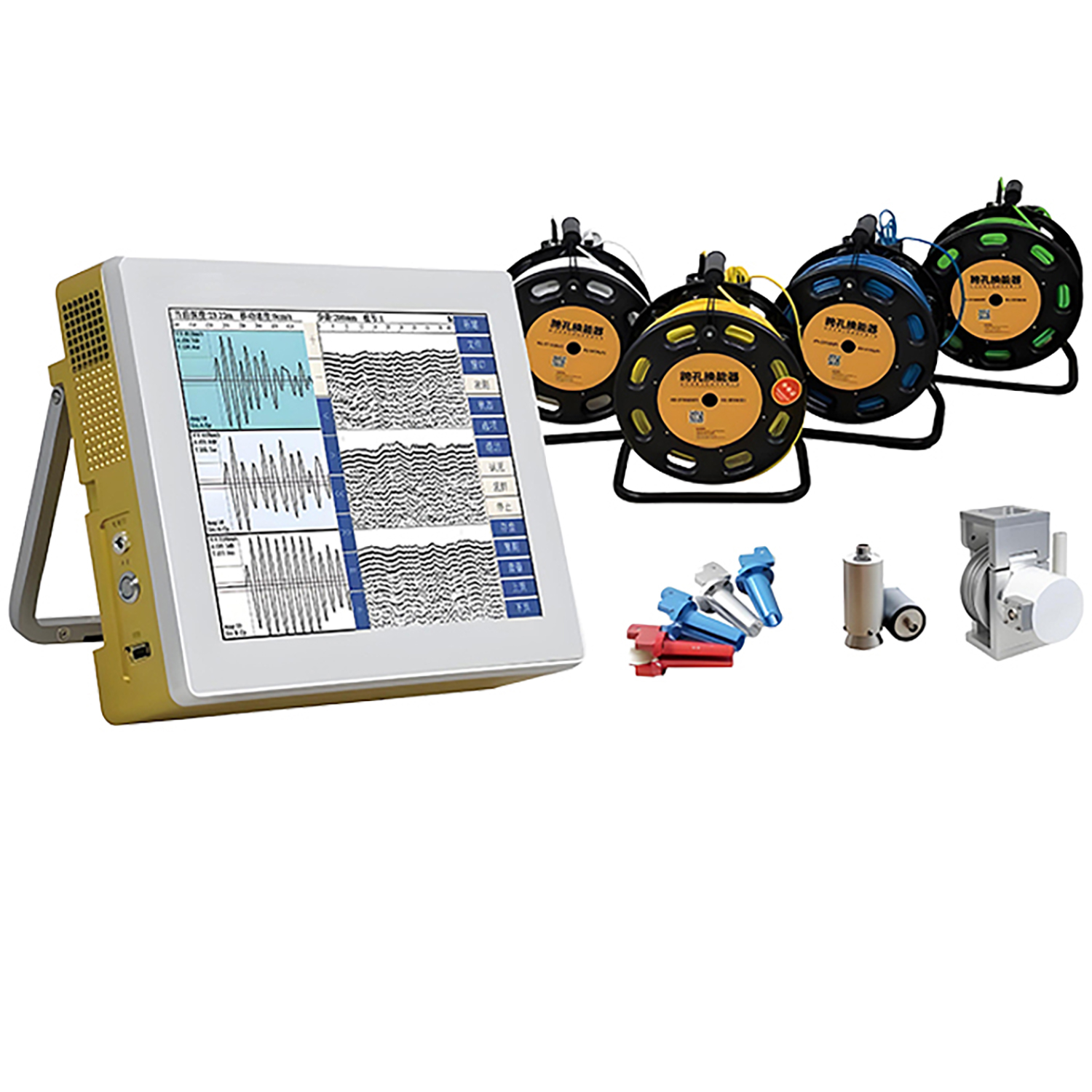

CESCO Crosshole Sonic Logging Test — CHUM monitor with cable reels, probes and accessories

Specifications

Technical Details

Features

Signal Overlay Multiple hammer signals overlay for automatic comparison

Display High-brightness screen for clear visibility under strong light

Data Upload Supports real-time data upload for monitoring and management

Data Management Reliable with massive data backup and management

Analysis Software On-site analysis software for fast and efficient results

Multi-Channel Collection Three channels available supporting simultaneous data collection

Standards Compliance Complies with various domestic and international testing standards

Multi-Channel Support Simultaneous multi-channel data collection

Compliance Meets various domestic and international testing standards

Connectivity 2 × USB 2.0 interfaces

Power Supply Built-in battery or external power supply

Specifications

Operating System Embedded Win CE 5.0

Display 12-inch high-brightness LCD screen

Storage Flash card

Touchscreen Capacitive touchscreen

Data Transfer USB and wireless upload

Channels 4 programmable channels

Voltage 500 V / 1000 V

Pulse Width 0.1 µs ~ 500 µs

Sampling Interval 0.1 µs ~ 400 µs

Signal-to-Noise Ratio 70 dB

Power Supply Built-in lithium battery

Operating Temperature −10 °C ~ +45 °C

Dimensions 31 cm × 24.8 cm × 7.5 cm

Cable Trunking 4-trunking

Bluetooth Supported

Working Mode Alternating transmit and receive

Probe Frequency 60 kHz

Probe Diameter Optional 27 mm / 30 mm

Operating Platform Windows system

Standards Supports multiple industry standards

Applications

Where the Crosshole Sonic Logging Test Excels

Piling and deep foundation projects requiring concrete integrity verification
Assessing the integrity and uniformity of concrete piles, diaphragm walls, and drilled shafts
Bridge foundations and major civil infrastructure
High-rise building foundations
Marine structures where reliable foundation quality verification is essential
Infrastructure developments and geotechnical investigations
