Full-Casing Drilling

Casing Rotator FCR160 – FCR320

High-torque full-casing rotators for piling through boulders and hard rock — 360° rotation, low noise and vibration, and excellent borehole verticality.

9,100 kN·m Max Torque (FCR320)

3,200 mm Max Drilling Dia.

>100 m Drilling Depth

1/500 Borehole Verticality

Overview

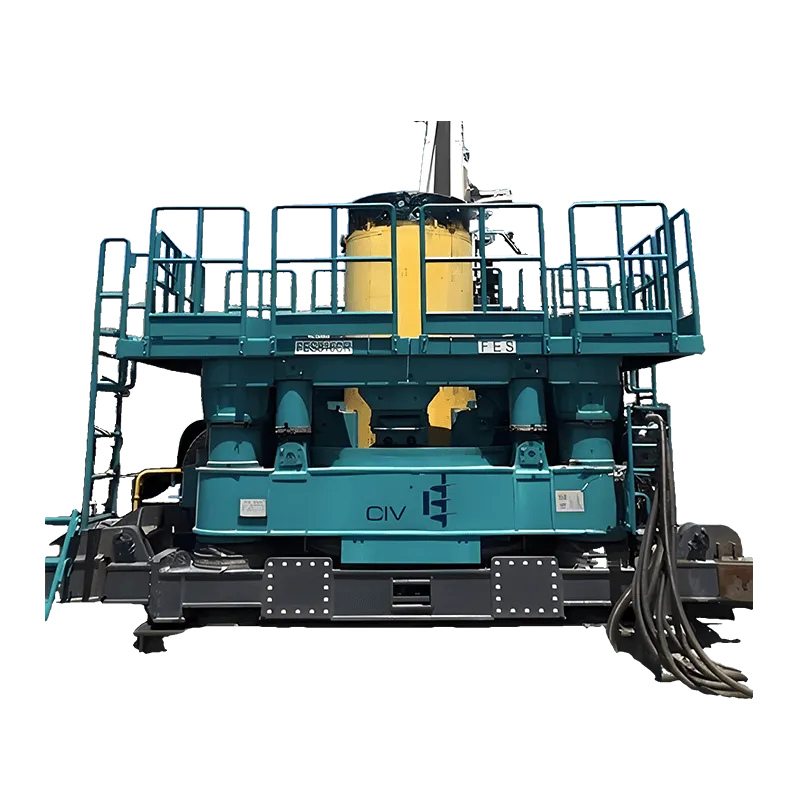

Casing Rotator FCR160 – FCR320

The Casing Rotator is a high-performance full-casing piling solution designed for demanding foundation and ground-engineering applications. Suitable for dual-wall segmental casing, it delivers reliable performance in difficult ground conditions including boulders and hard rock — performing effectively in strata up to 60 MPa.

With low-noise, low-vibration operation, high torque output, 360° rotation, and excellent borehole verticality of up to 1/500, the casing rotator is an efficient, environmentally friendly solution for urban construction, infrastructure, and restricted-access projects. Hydraulic or remote-control operation is available, and the unit can run from a separate hydraulic power pack for remote or challenging job sites.

Request a Quote Download Spec Sheet

Specifications

Technical Details

FCR160

Drilling Diameter 1,000–2,100 mm

Max Torque 3,100 kN·m (instant 3,525)

Rotary Speed 1.0 / 1.6 / 2.7 rpm

Max Pushing Force 680 + 280 kN (dead weight)

Max Pulling Force 3,760 kN (instant 4,300)

Stroke of Crowd 600 mm

Main Machine Weight 45 t

Power Station Weight 8 t

Engine Cummins QSM11-335

Engine Power 274 kW @ 1,800 rpm

Control Mode Remote wired

FCR260

Drilling Diameter 1,500–2,600 mm

Max Torque 5,300 kN·m (instant 6,200)

Rotary Speed 0.6 / 1.0 / 1.8 rpm

Max Pushing Force 830 + 360 kN (dead weight)

Max Pulling Force 4,600 kN (instant 5,200)

Stroke of Crowd 750 mm

Main Machine Weight 58 t

Power Station Weight 12 t

Engine Cummins QSX15-500

Engine Power 398 kW @ 1,800 rpm

Control Mode Remote wired

FCR320

Drilling Diameter 2,200–3,200 mm

Max Torque 9,100 kN·m (instant 11,000)

Rotary Speed 0.6 / 1.0 / 1.8 rpm

Max Pushing Force 1,000 + 500 kN (dead weight)

Max Pulling Force 7,250 kN (instant 8,350)

Stroke of Crowd 650 mm

Main Machine Weight 85 t

Power Station Weight 12 t

Engine Cummins QSM15-500

Engine Power 398 kW @ 1,800 rpm

Control Mode Remote wired

Applications

Where the Casing Rotator Excels

Full-casing bored piling in difficult ground
Boulders, hard rock, and underground obstructions
Dual-wall segmental casing installation
Noise- and vibration-sensitive urban sites
Restricted-access and infrastructure projects
