Casing Extraction
Casing Puller Hydraulic
Compact multi-cylinder hydraulic pullers that extract single- and double-wall temporary casings with high pull-up force and easy transport between sites.
up to 600 t Rated Extraction Force
2,000 mm Max Casing Dia.
4 × Extraction Cylinders
1,000 mm Cylinder Stroke
Overview

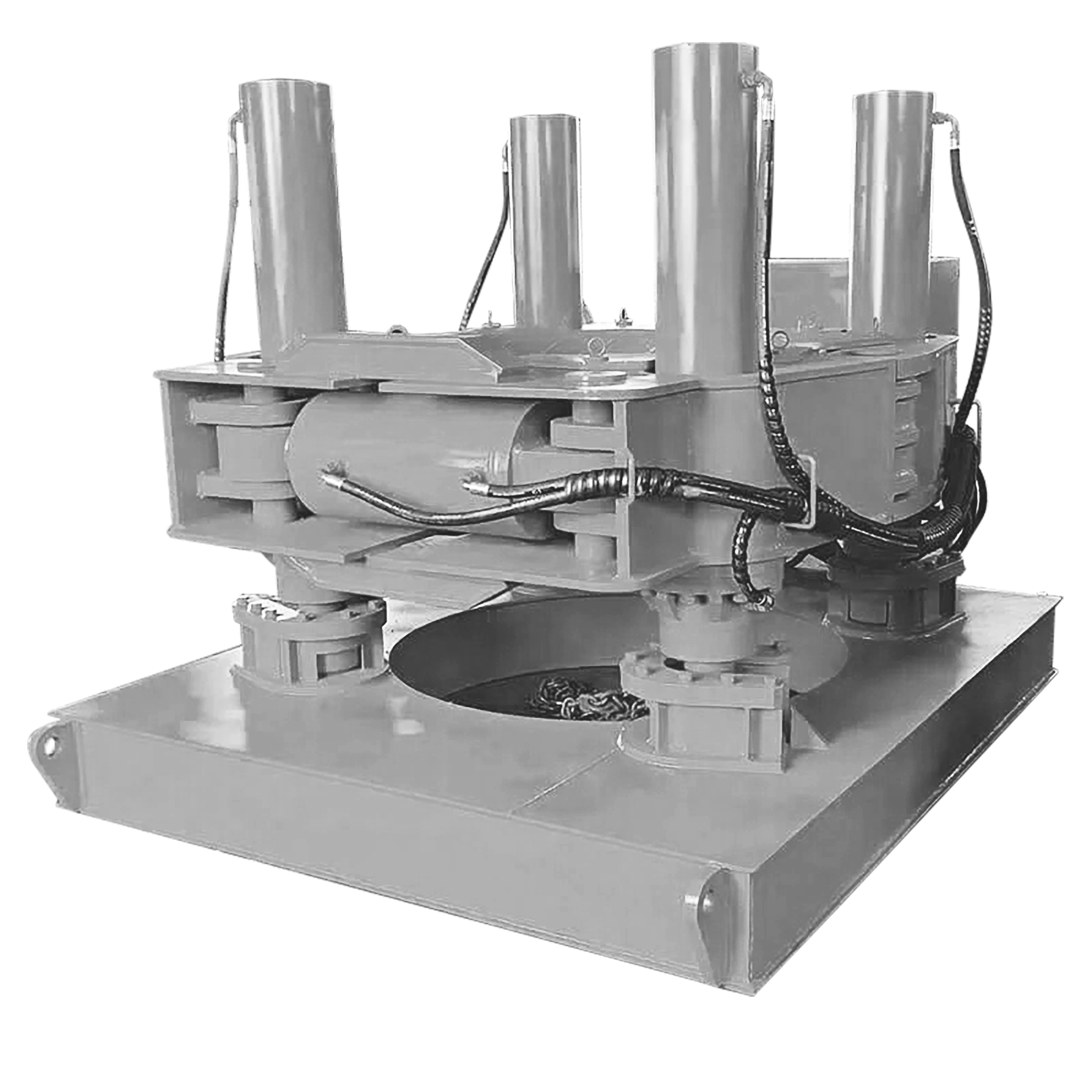

Casing Puller Hydraulic
The Hydraulic Casing Puller is a compact, efficient solution for removing single-wall and double-wall casings in foundation and piling applications. A hydraulic multi-cylinder system delivers high extraction force with simple operation and easy transport between job sites.
Suitable for a range of casing diameters, the unit can be powered by a drilling rig or a separate hydraulic power pack, and custom sizes are available to suit project requirements.
Specifications
Technical Details
1,200 mm OD
Rated Extraction Force 320 t
Max Clamping Force 120 t
Max Casing Diameter 1,200 mm
Extraction Cylinders 4 × 1,000 mm stroke
Clamping Cylinders 1
Weight 6,100 kg
Dimensions (L×W×H) 3.6 × 2.0 × 2.0 m
1,500 mm OD
Rated Extraction Force 500 t
Max Clamping Force 200 t
Max Casing Diameter 1,500 mm
Extraction Cylinders 4 × 1,000 mm stroke
Clamping Cylinders 1
Weight 8,000 kg
Dimensions (L×W×H) 3.7 × 2.2 × 2.1 m
2,000 mm OD
Rated Extraction Force 600 t
Max Clamping Force 220 t
Max Casing Diameter 2,000 mm
Extraction Cylinders 4 × 1,000 mm stroke
Clamping Cylinders 1
Weight 14,000 kg
Dimensions (L×W×H) 4.6 × 3.0 × 2.4 m
Applications
Where the Casing Puller Excels
- Extraction of temporary casings
- Bored piling and drilled-shaft construction
- Diaphragm wall works
- Deep foundation projects
