CESCO Impact Hammer Range

FAHH 3-11t Hydraulic Impact Hammer Range

3 to 11 tonne ram hydraulic impact hammer range for steel tubes, combi piles, H sections, and reinforced or pre-stressed concrete piles.

3-11 t Ram Mass Range
35-129 kNm Max Impact Energy
29-48 BPM Blow Rate
225-360 LPM Hydraulic Flow
Overview

FAHH 3-11t Hydraulic Impact Hammer Range

The FAHH 3-11t Hydraulic Impact Hammer Range is designed for driving a variety of piles including steel tubes, combi piles, H sections, and reinforced or pre-stressed concrete piles. The range can be operated from piling rig leaders or crane suspended, giving contractors flexibility across foundation and marine projects.

The FAHH hydraulic circuit and hammer design support impact efficiency above 90% while maintaining a consistent impact value. Step-less ram-height control helps operators adjust to different piles and ground conditions, while modular construction and interchangeable parts simplify maintenance and reduce downtime.

Request a Quote Download Spec Sheet

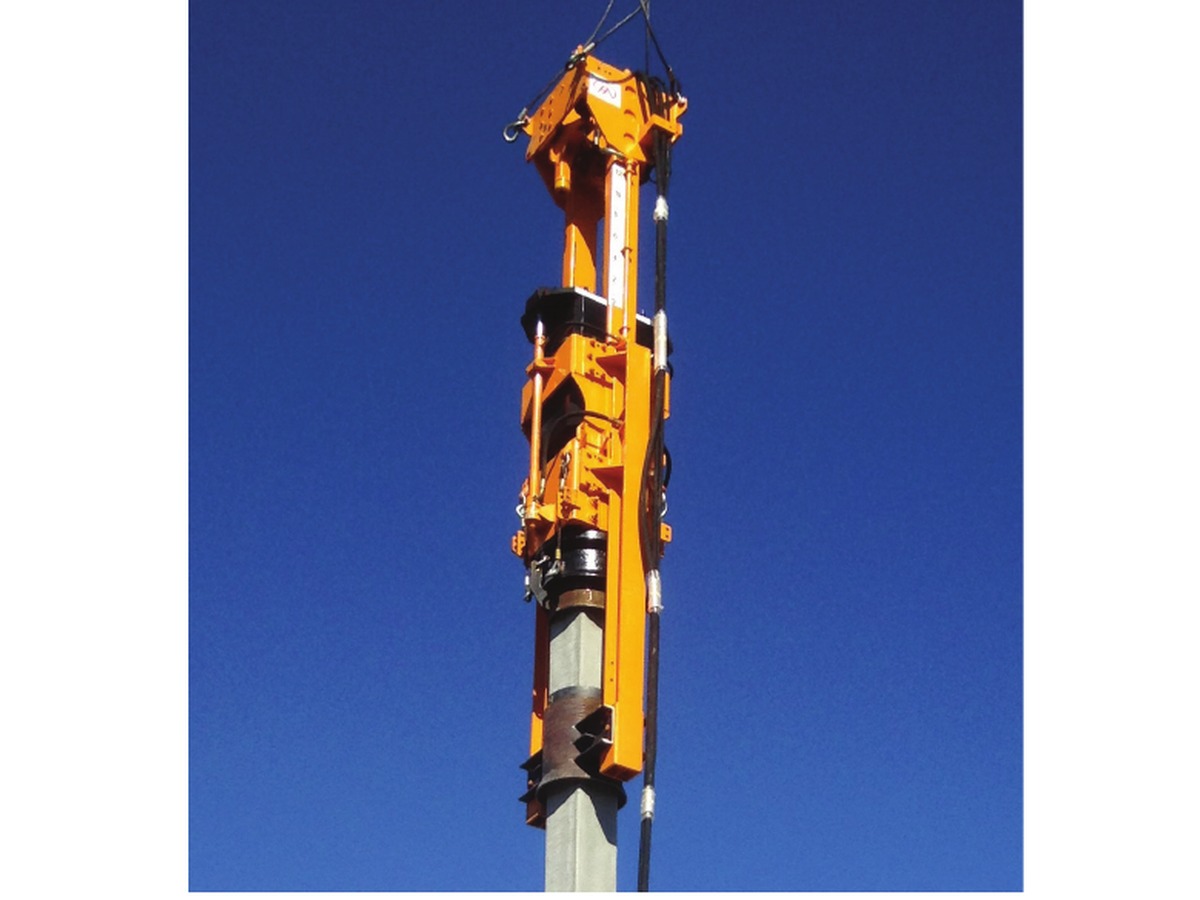

FAHH 3-11t hydraulic impact hammer driving a pile
Specifications

Technical Details

FAHH 3-11t Range Performance
FAHH 3 3,000 kg ram, 35 kNm, 48 BPM, 7,000 kg hammer, 210 bar, 225 LPM
FAHH 5 5,000 kg ram, 59 kNm, 46 BPM, 9,000 kg hammer, 230 bar, 225 LPM
FAHH 7 7,000 kg ram, 82 kNm, 42 BPM, 11,300 kg hammer, 230 bar, 230 LPM
FAHH 9 9,000 kg ram, 106 kNm, 38 BPM, 14,500 kg hammer, 280 bar, 260 LPM
FAHH 11 11,000 kg ram, 129 kNm, 29 BPM, 16,000 kg hammer, 300 bar, 360 LPM
Common Hammer Data
Maximum Stroke 1,200 mm
Minimum Stroke 100 mm
Operation Piling rig leaders or crane suspended
Efficiency Above 90% hammer efficiency
Control Step-less ram-height control
Construction Simple modular construction with interchangeable parts
FAV 400 Multipack Hydraulic Powerpack
Type Diesel
Engine Model Perkins 1006-6T
Power 160 HP
Maximum Drive Flow 224 litres/min
Maximum Drive Pressure 220 bar
Operating Speed 1,900 rpm
Weight 3 tons approx.
Input Voltage 24V
Maximum Load Current 60 amps
IP Code IP54
Noise Level 111.8 dB
Overall Dimensions 2,740 L x 1,100 W x 2,200 H mm
Technical Diagrams

Dimensions & Geometry

FAHH 3-11t hydraulic impact hammer component diagram
Hydraulic actuator, ram weight, and pile cap arrangement
