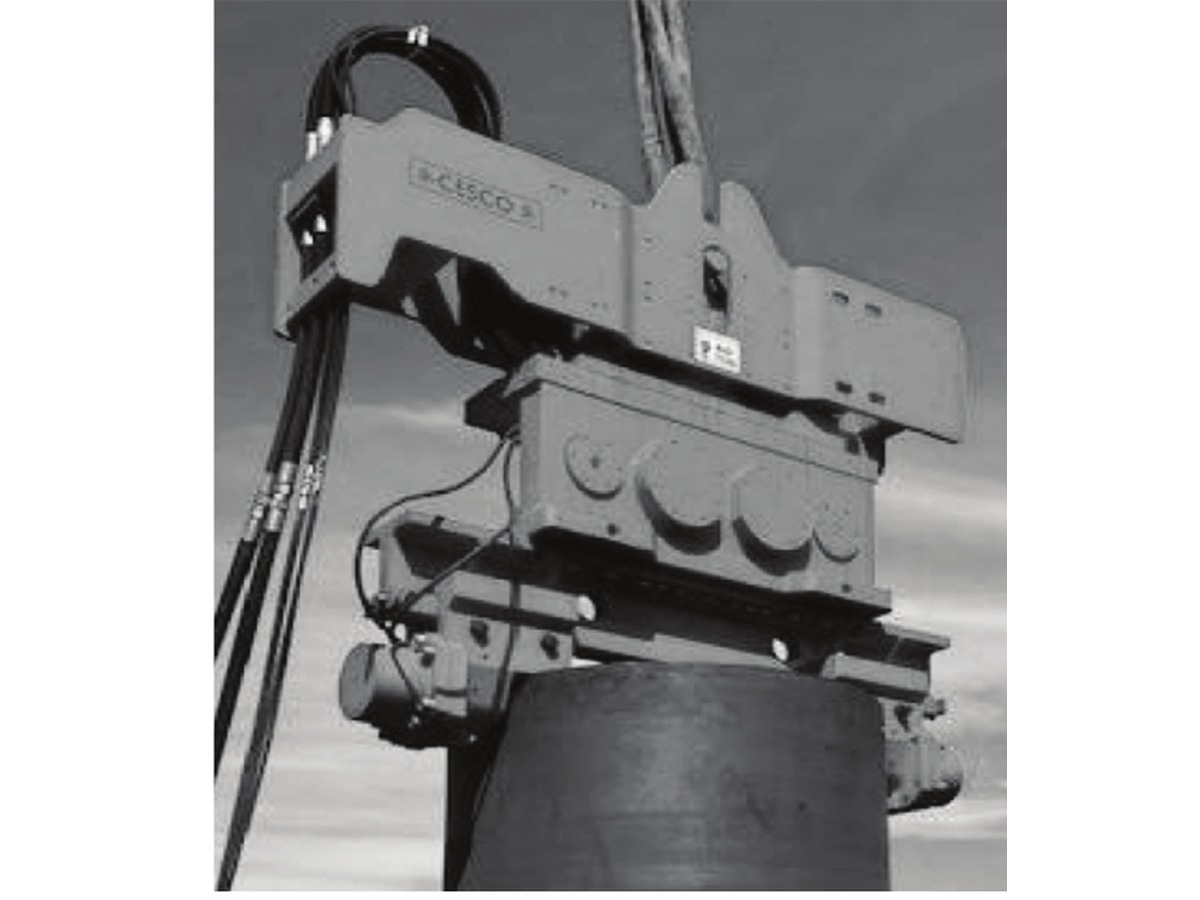

SV325-2 Vibratory Hammer + 400P Powerpack
Hire-ready vibro hammer with dual clamps for casing diameters from 350-1800 mm, paired with a Cummins-powered 400P hydraulic powerpack.
SV325-2 Vibratory Hammer + 400P Powerpack
The SV325-2 Vibratory Hammer is a hire-ready casing and piling hammer package supplied with a matching 400P hydraulic powerpack. With 30 kgm eccentric moment, 1,067 kN rated centrifugal force, and 961 kN maximum extraction force, it is suited to pile driving and casing extraction work.
The SV325-2 is fitted for 350-1800 mm casing diameters and is supplied with dual clamps. The 400P powerpack uses a Cummins QSM11 engine package, 300 bar rated working pressure, and up to 546 L/min hydraulic flow.
Technical Details
Where the SV325-2 Excels
- Casing driving and extraction
- Sheet pile driving and extraction
- Marine and waterfront piling
- Project-based hire where dual clamps are required
- Sites requiring a matched hammer and 400P powerpack package
Ready to Get Started?
Talk to our team about specifications, pricing, and availability of the SV325-2.
