Stress & Strain Monitoring
Measure direct load, strain, and pressure on piles, anchors, retaining structures, and concrete elements — vibrating-wire instruments for permanent installations.
Stress & Strain Instruments
Stress and strain monitoring captures direct material load and deformation in foundation and structural elements — bored piles under load test, tie-back anchors holding retaining walls, tunnel linings under earth pressure, and concrete piers under service load.
GeoSitter offers a complete range built on vibrating-wire sensor technology for long-term stability: spot-weldable rebar strain meters, total pressure cells, centre-hole anchor load cells, general-purpose load cells, and surface-mount / embedded strain gauges.
Stress & Strain Instruments
Five instrument families covering reinforcement strain, earth pressure, anchor load, general-purpose load, and surface / embedded material strain.

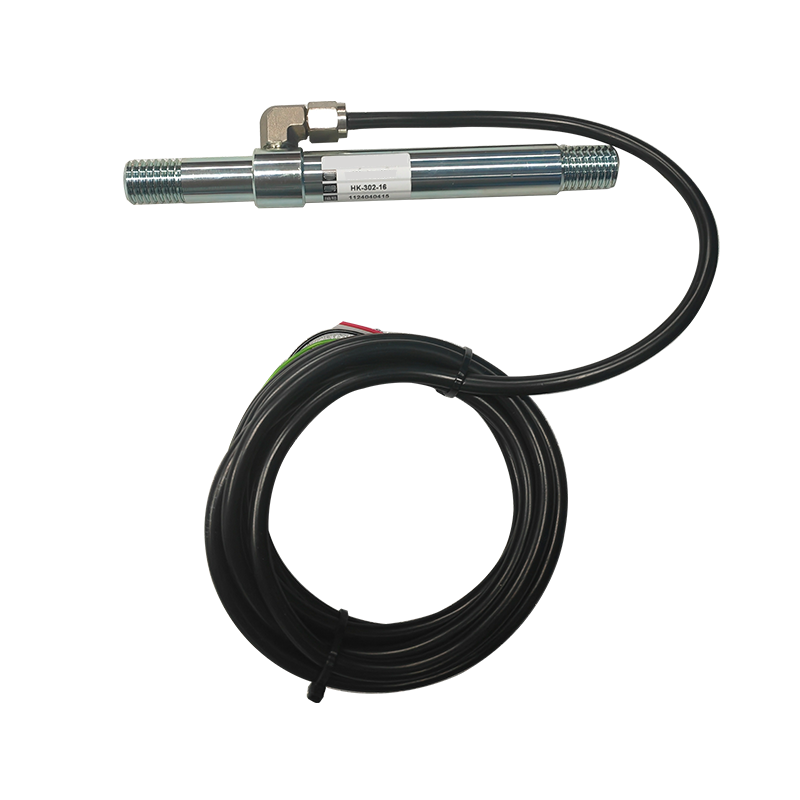

Rebar Strain Meter
Spot-welded vibrating-wire strain meter for monitoring reinforcement bar strain in concrete piles, piers, and slabs.

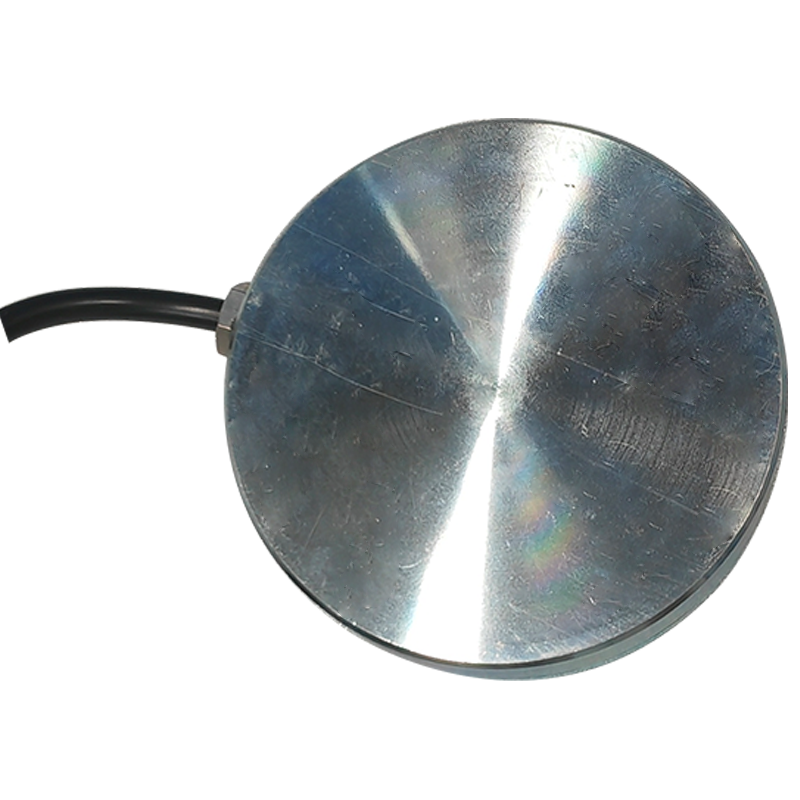

Pressure Cell
Earth pressure cell for measuring soil and concrete pressures against structures, retaining walls, and tunnel linings.
Anchor Load Cell
Centre-hole load cell for monitoring tensioned anchor loads in retaining structures, tunnel rock bolts, and tie-back systems.

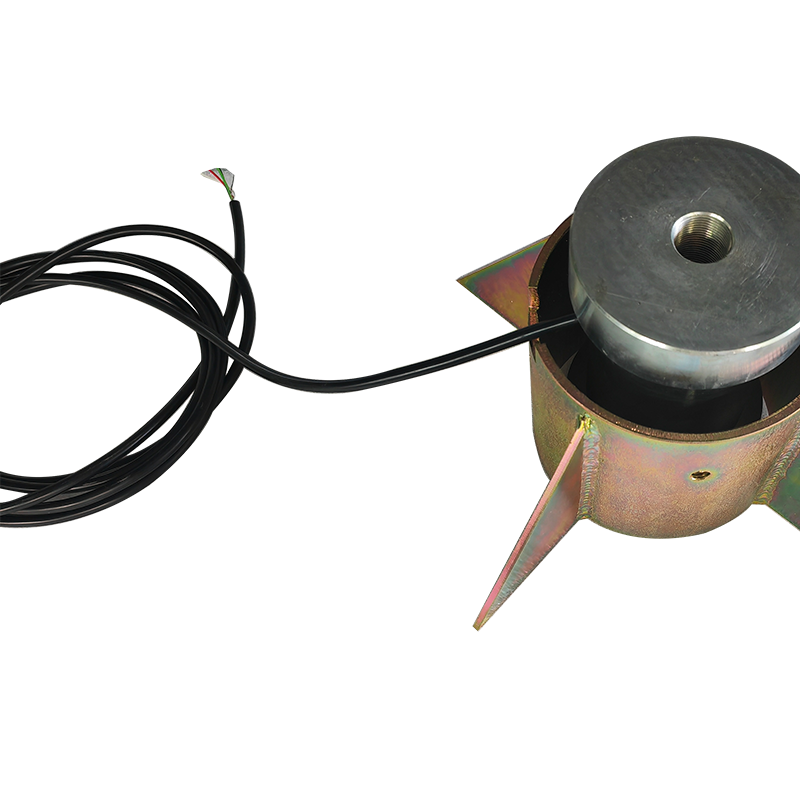

Load Cell
General-purpose vibrating-wire load cells for static and dynamic load measurement on piles, anchors, and structures.

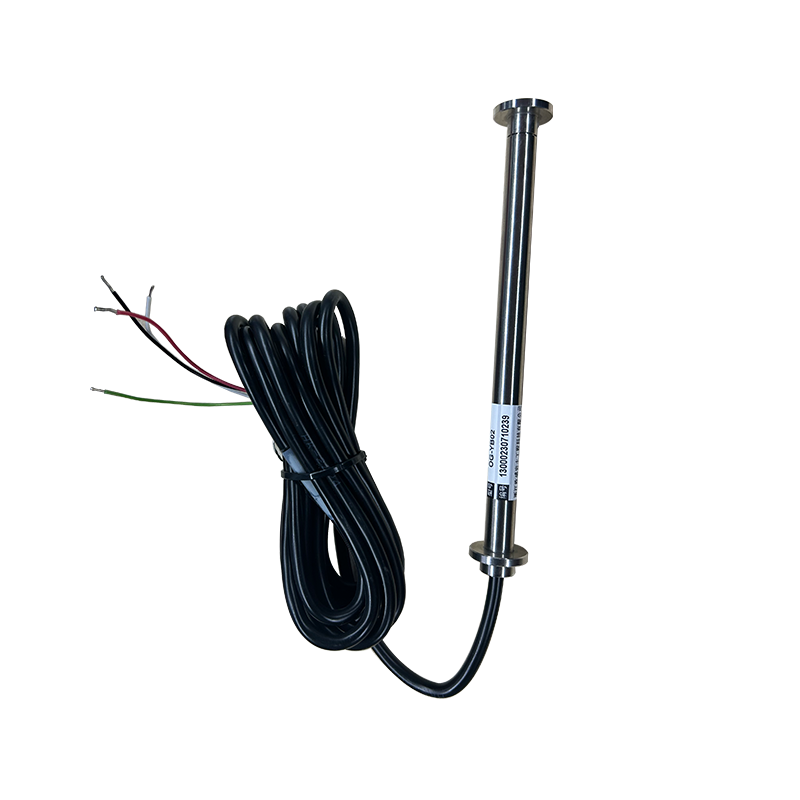

Surface / Embedded Strain Gauge
Vibrating-wire strain gauges for surface mounting on steel and embedded installation in concrete — measure direct material strain.
Why GeoSitter Stress / Strain
Reinforcement to anchor
From spot-welded rebar strain meters through to high-capacity anchor load cells — instruments for every stress / strain measurement on a foundation project.
Vibrating-wire technology
Vibrating-wire sensors provide stable, long-term measurement immune to cable resistance variation — ideal for permanent installations.
Online monitoring
All instruments tie into the GeoSitter platform for automated load and strain data capture with configurable alerts.
ISO 9001 & CE
All stress and strain instruments are ISO 9001 and CE-certified for compliance with Australian and international standards.
Need load or strain monitoring?
Talk to our team about sensor selection, capacity sizing, and pile load testing instrumentation for your project.
