CESCO FR Series

FR6 Mini Piling Drill Rig

Compact and versatile drill rig for geotechnical, foundation, and site investigation work in restricted-access environments. Up to 11 m drilling depth from a 2,950 kg footprint.

6 kN·m Drilling Torque

500 mm Max Diameter

11 m Drilling Depth

2,950 kg Operating Weight

Overview

FR6 Mini Piling Drill Rig

The FR6 Mini Piling Drill Rig is a compact and versatile drilling solution designed for geotechnical, foundation, and site investigation applications. Combining compact transport dimensions with up to 11 metres of drilling depth, the FR6 delivers reliable performance in restricted-access and challenging job sites.

Built using high-quality components from globally recognised suppliers including Danfoss, Rexroth, Gates, SKF, and FAG, the FR6 is designed for dependable operation, reduced downtime, and simplified servicing. Manufactured in Asia to improve delivery times and reduce costs to the Australian market, the machine is backed by a 12-month or 2,000-hour warranty.

Request a Quote Download Spec Sheet

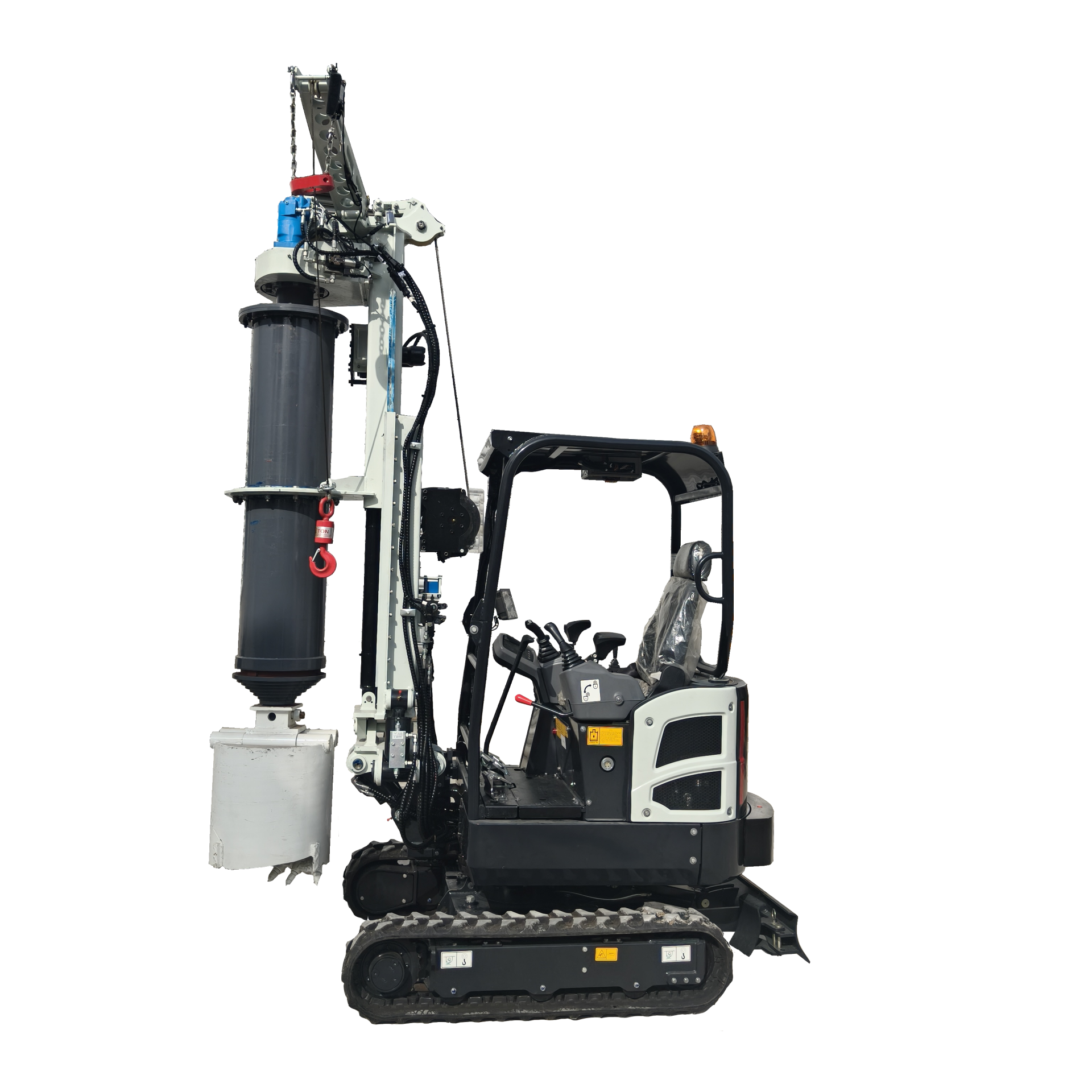

CESCO FR6 Mini piling drill rig with mast deployed

Specifications

Technical Details

Engine

Brand Yanmar

Power 15.2 kW

Speed 2,800 rpm

Rotary Head

Maximum Torque 6 kN·m

Speed 20–40 rpm

Drilling

Maximum Diameter 500 mm

Maximum Depth 11 m

Crowd Cylinder

Maximum Pressure 15 kN

Maximum Lifting Force 25 kN

Maximum Stroke 800 mm

Main Winch

Maximum Lifting Force 15 kN

Maximum Lifting Speed 40 m/min

Rope Diameter 16 mm

Auxiliary Winch

Maximum Lifting Force 6 kN

Maximum Lifting Speed 30 m/min

Rope Diameter 8 mm

Mast Inclination

Left / Right / Forward / Backward ±4°

Dimensions

Machine Weight 2,950 kg

Working Dimensions 3,400 × 1,400 × 3,150 mm

Transport Dimensions 5,000 × 1,080 × 2,500 mm

Transport with Kelly Bar Yes

Technical Diagrams

Dimensions & Geometry

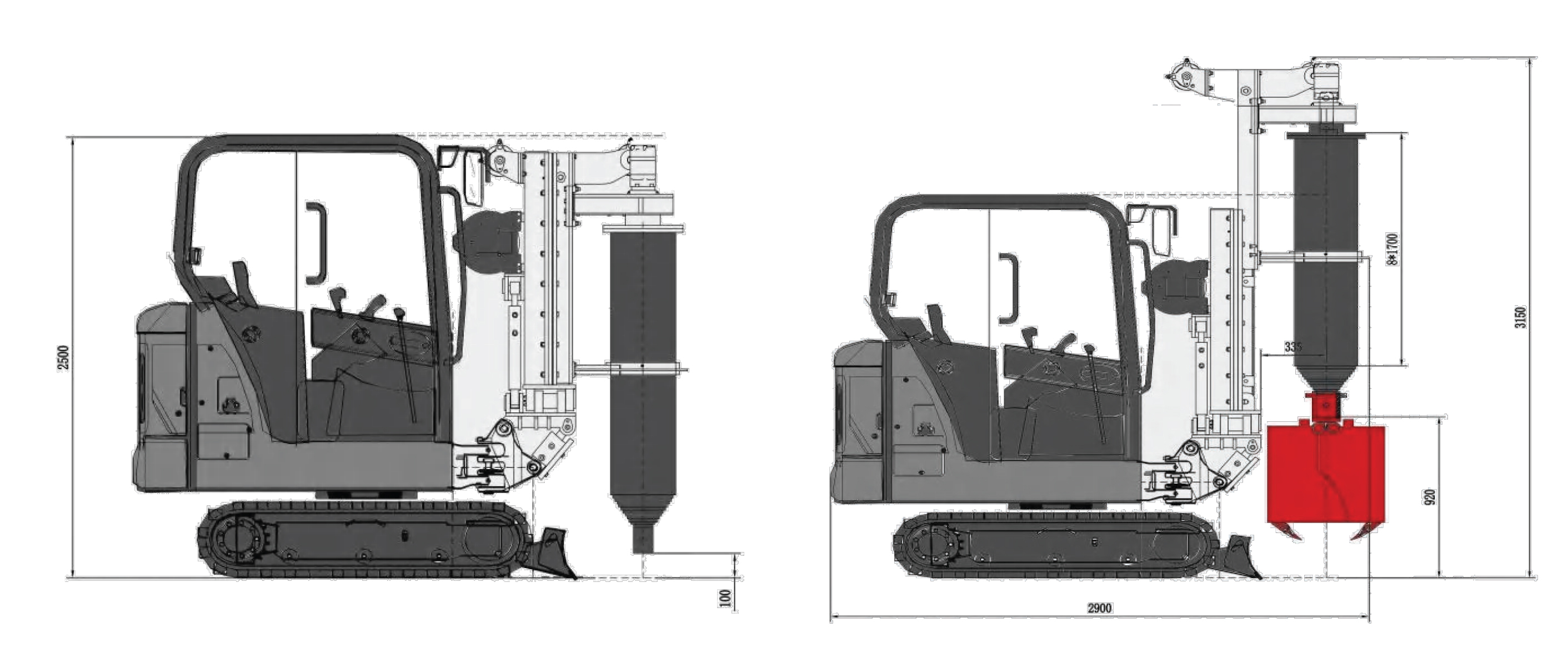

FR6 Mini line drawings — transport state and working state with dimensions — Transport state (left) · Working state (right) — dimensions in mm

Premium Components

Built to Global Standards

Major components are sourced from globally recognised manufacturers and meet Australian and international engineering standards.

Component Manufacturer Standard

Carrier Base Yanmar —

Mast Steel Grade Q355 / Q460 GB/T 1591-2018 (AS/NZS 3679.1)

Kelly Bar Steel Grade Q355 / Q46 / 27SiMn GB/T 8162 (AS/NZS 1163) / GB/T 3077-2018 (EN 10083)

Rotary Drive Motor-Danfoss ISO 4413 (AS 4024.3301)

Hydraulic Components Rexroth ISO 4413 (AS 4024.3301)

Hydraulic Hoses Gates / Continental EN853-1SN / EN853-2SN / EN857-4SH

Bolt Grade ≥ 8.8 grade GB/T 3098.1-2010 / GB/T 18684-2002

Sheave Bearings SKF / FAG GB/T 10051 (AS 3775)

Hooks & Wire Rope 35WK7 grade GB/T 19001-2016 (ISO 9001:2015)

Welding Standards — JB/T 5943-2018 (AS/NZS 1554.1)

Applications

Where the FR6 Mini Excels

Geotechnical investigation and soil sampling
Foundation work in restricted-access sites
Residential and backyard piling
Small commercial micropiling
Anchor and ground-improvement drilling
Under bridges, power lines, and inside buildings
