CESCO FR Series

FR45 Compact Rotary Drilling Rig

Compact and capable mid-range rig built for low-headroom environments and rapid mobilisation. 45 kN·m torque, 15 m depth, integrated CFA mode.

45 kN·m Drilling Torque

1,000 mm Max Diameter

15 m Drilling Depth

13,000 kg Operating Weight

Overview

FR45 Compact Rotary Drilling Rig

The FR45 Small Kelly Rig is a compact and highly capable drilling solution designed for foundation and piling applications where transport efficiency, restricted access, and fast mobilisation are critical. Engineered with a lightweight and compact structure, the FR45 is ideal for low-headroom environments, confined job sites, and projects requiring rapid setup with minimal site preparation. Delivered fully assembled and ready for immediate operation, the rig helps reduce downtime while improving on-site productivity.

The FR45 offers reliable performance, operational stability, and multiple integrated safety protection systems for demanding construction environments. Manufactured in Asia for cost and delivery efficiency to Australia, the machine is supplied fully assembled and backed by a 12-month / 2,000-hour warranty.

Request a Quote Download Spec Sheet

Specifications

Technical Details

Engine

Model YANMAR

Rated Power 56.5 kW

Rated Speed 2,200 rpm

Rotary Head

Maximum Output Torque 45 kN·m

Drilling Speed 0–60 rpm

Drilling

Maximum Diameter 1,000 mm

Maximum Depth 15 m

Interlocking Kelly Bar 15 m

CFA Mode

Maximum Diameter 600 mm

Maximum Depth 10 (7 + 3) m

Max Pressure (Crowd Winch) 30 kN

Crowd Cylinder

Maximum Pressure 80 kN

Maximum Lifting Force 60 kN

Stroke 2,000 mm

Main Winch

Maximum Lifting Force 60 kN

Maximum Lifting Speed 50 m/min

Rope Diameter 16 mm

Auxiliary Winch

Maximum Lifting Force 15 kN

Maximum Lifting Speed 40 m/min

Rope Diameter 10 mm

Mast & System

Mast Inclination 4° / 4° / 87°

Hydraulic Working Pressure 28 MPa

Operating Weight 13,000 kg

Dimensions

Working Dimensions 4,560 × 2,300 × 8,590 mm

Transport Dimensions 7,200 × 2,300 × 3,000 mm

Technical Diagrams

Dimensions & Geometry

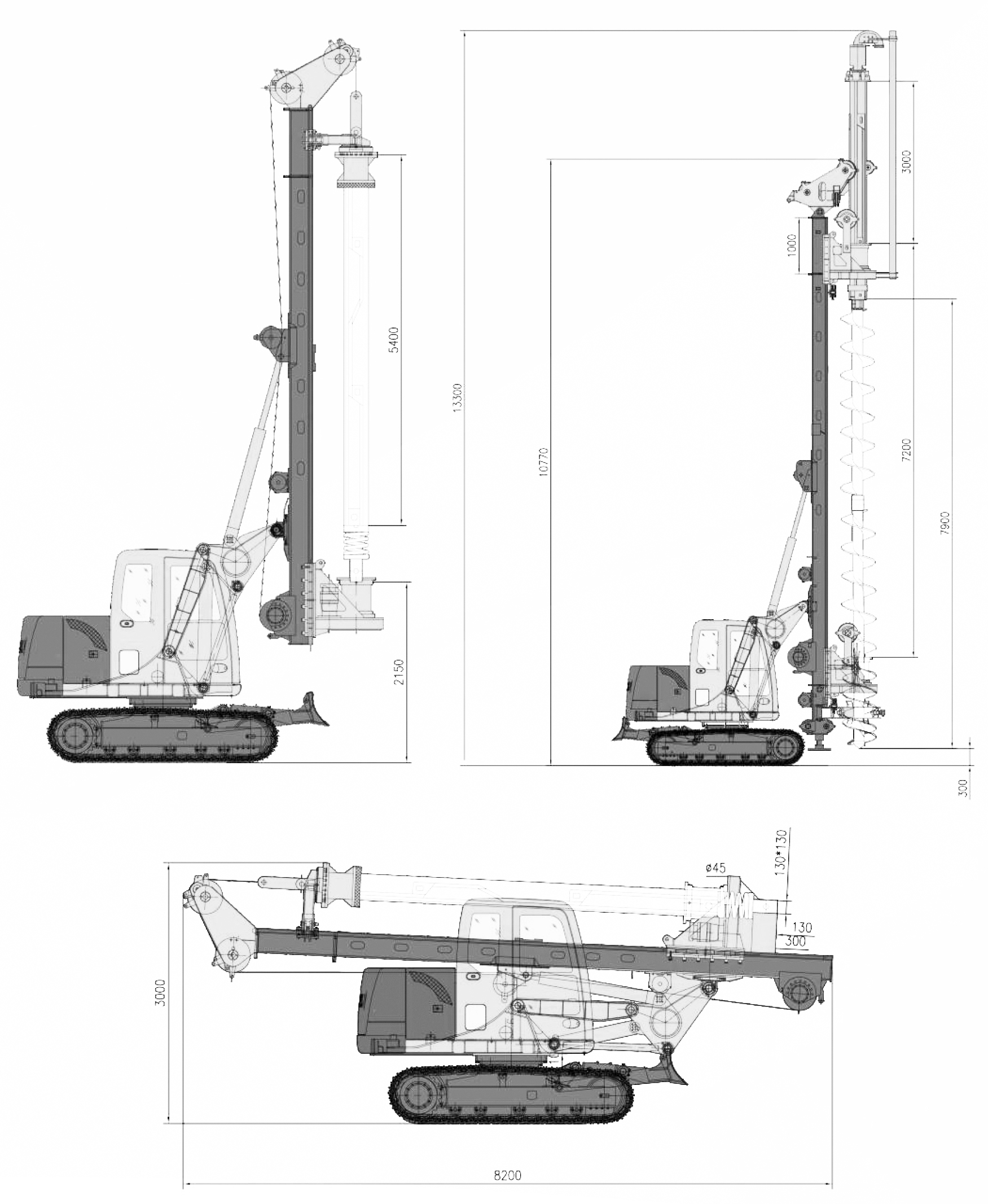

FR45 Compact Rotary Drilling Rig line drawings — working state, CFA mode, and transport state — Working state (top-left) · CFA mode (top-right) · Transport state (bottom) — dimensions in mm

Premium Components

Built to Global Standards

Major components are sourced from globally recognised manufacturers and meet Australian and international engineering standards.

Component Manufacturer Standard

Carrier Base Yanmar —

Mast Steel Grade Q355 / Q460 GB/T 1591-2018 (AS/NZS 3679.1)

Kelly Bar Steel Grade Q355 / Q46 / 27SiMn GB/T 8162 (AS/NZS 1163) / GB/T 3077-2018 (EN 10083)

Rotary Drive Rexroth ISO 4413 (AS 4024.3301)

Hydraulic Components Rexroth / Kawasaki ISO 4413 (AS 4024.3301)

Hydraulic Hoses Gates / Continental EN853-1SN / EN853-2SN / EN857-4SH

Bolt Grade ≥ 8.8 grade GB/T 3098.1-2010 (AS/NZS ISO 898-1) / GB/T 18684-2002 (AS 1418)

Sheave Bearings SKF / FAG GB/T 10051 (AS 3775)

Hooks & Wire Rope 35WK7 grade GB/T 19001-2016 (ISO 9001:2015)

Welding Standards — JB/T 5943-2018 (AS/NZS 1554.1)
